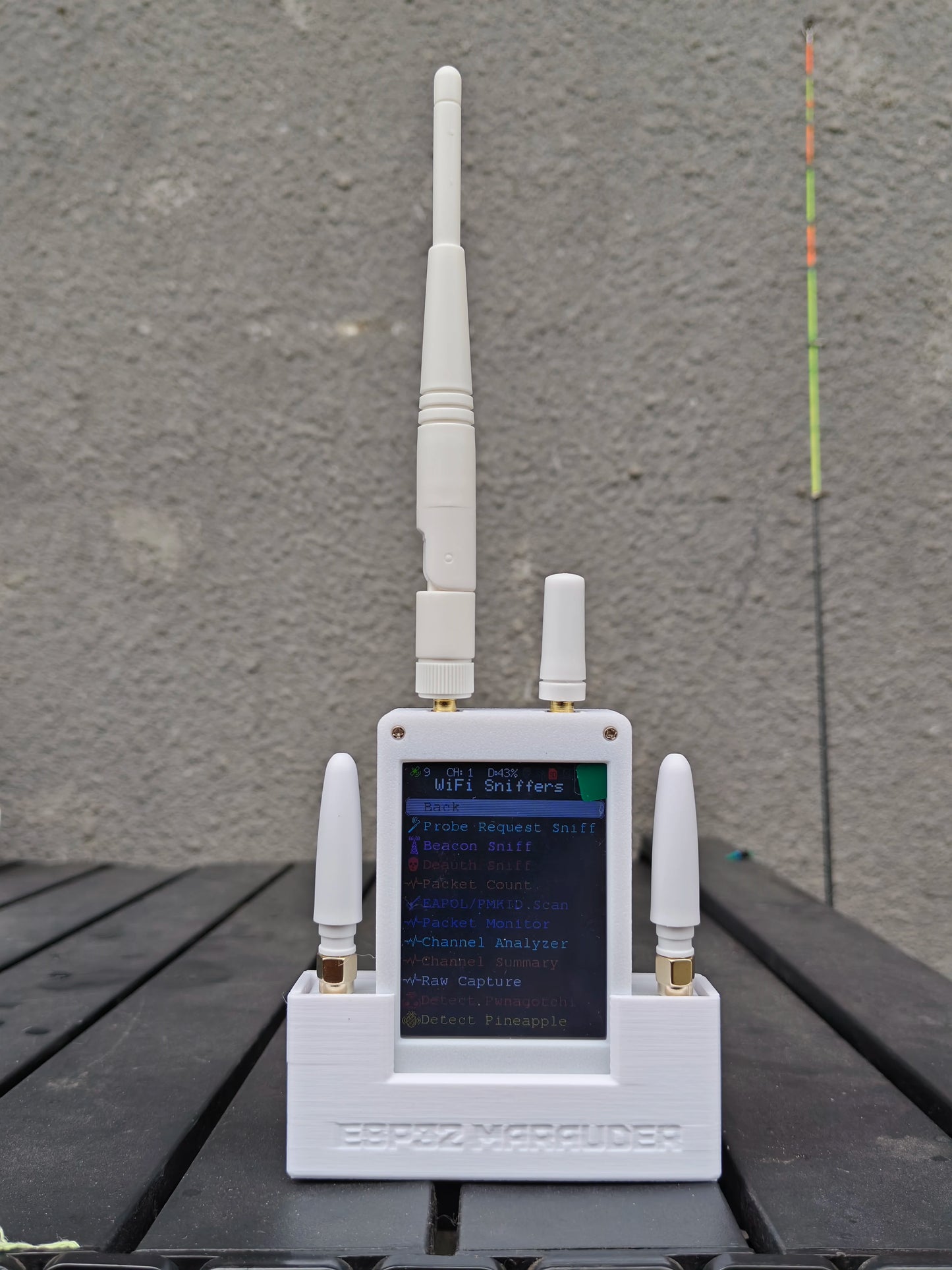

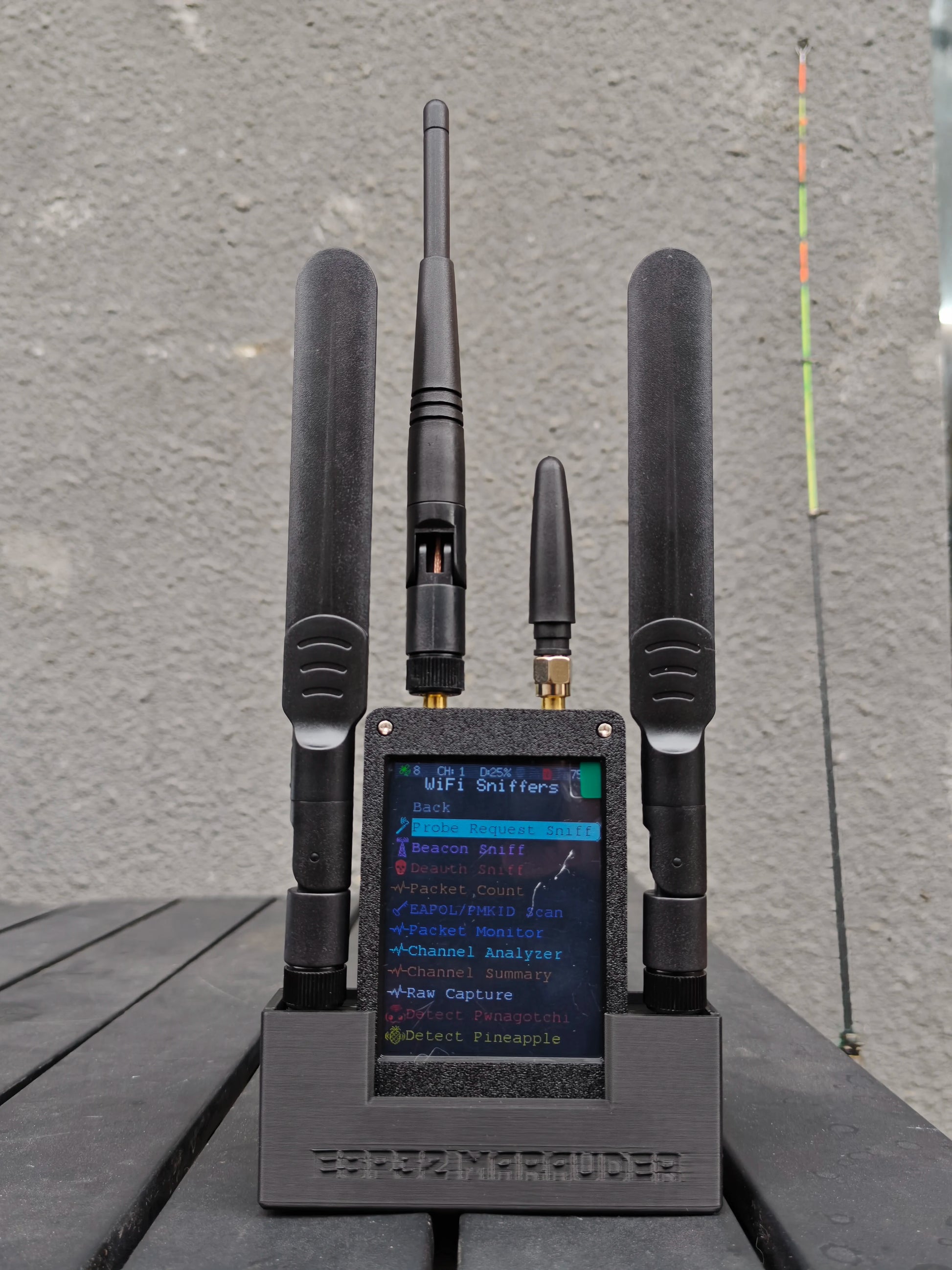

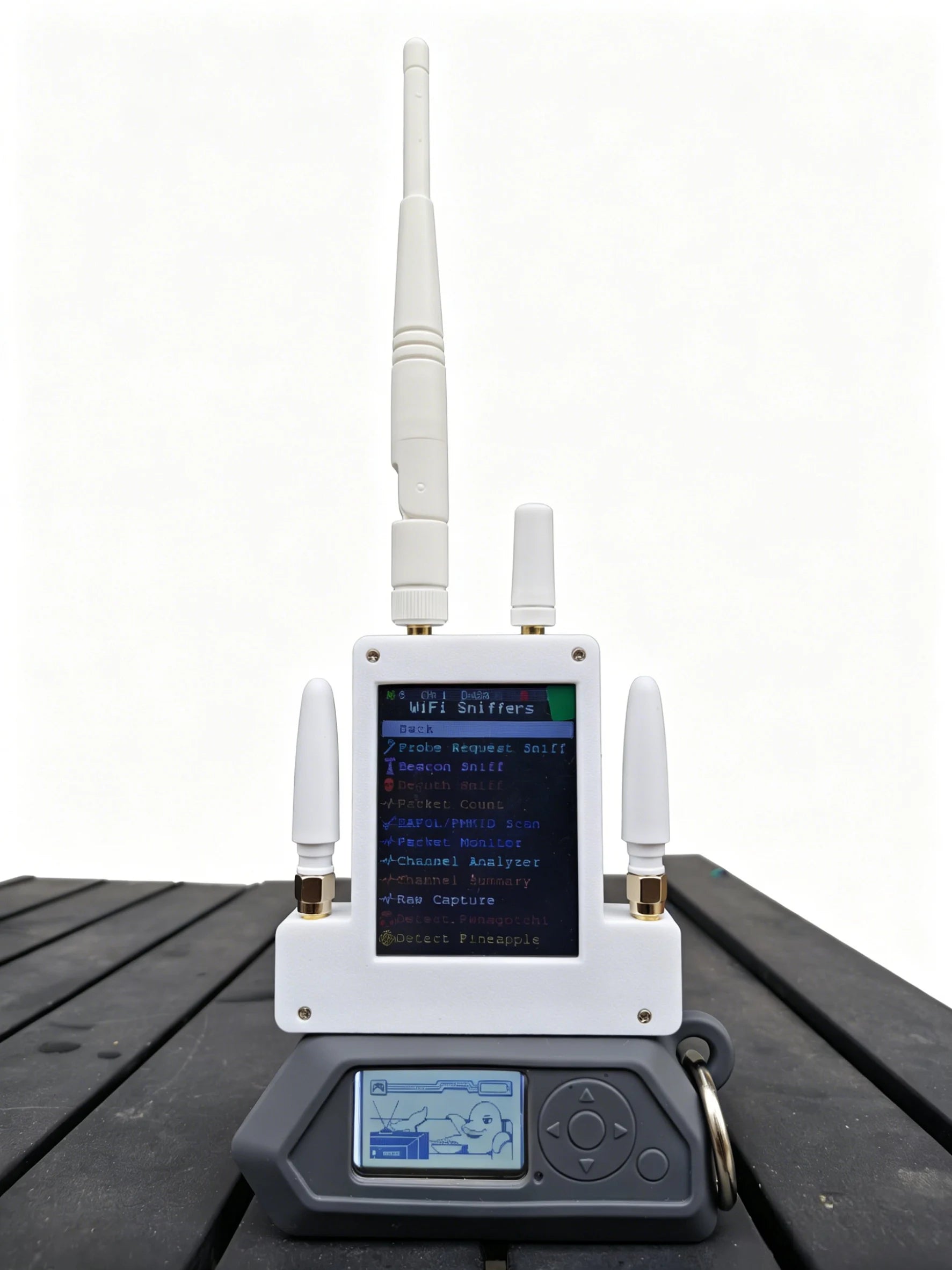

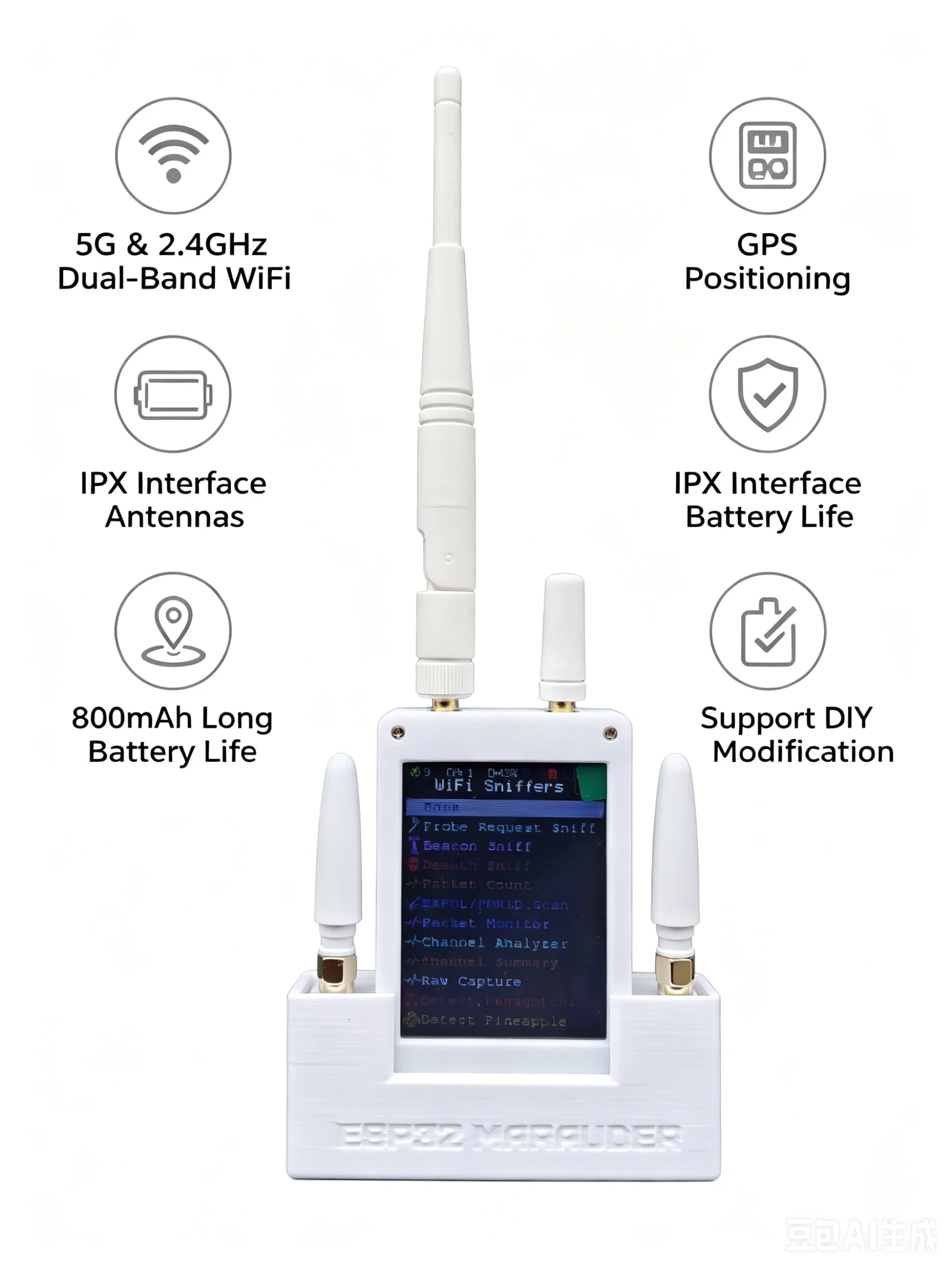

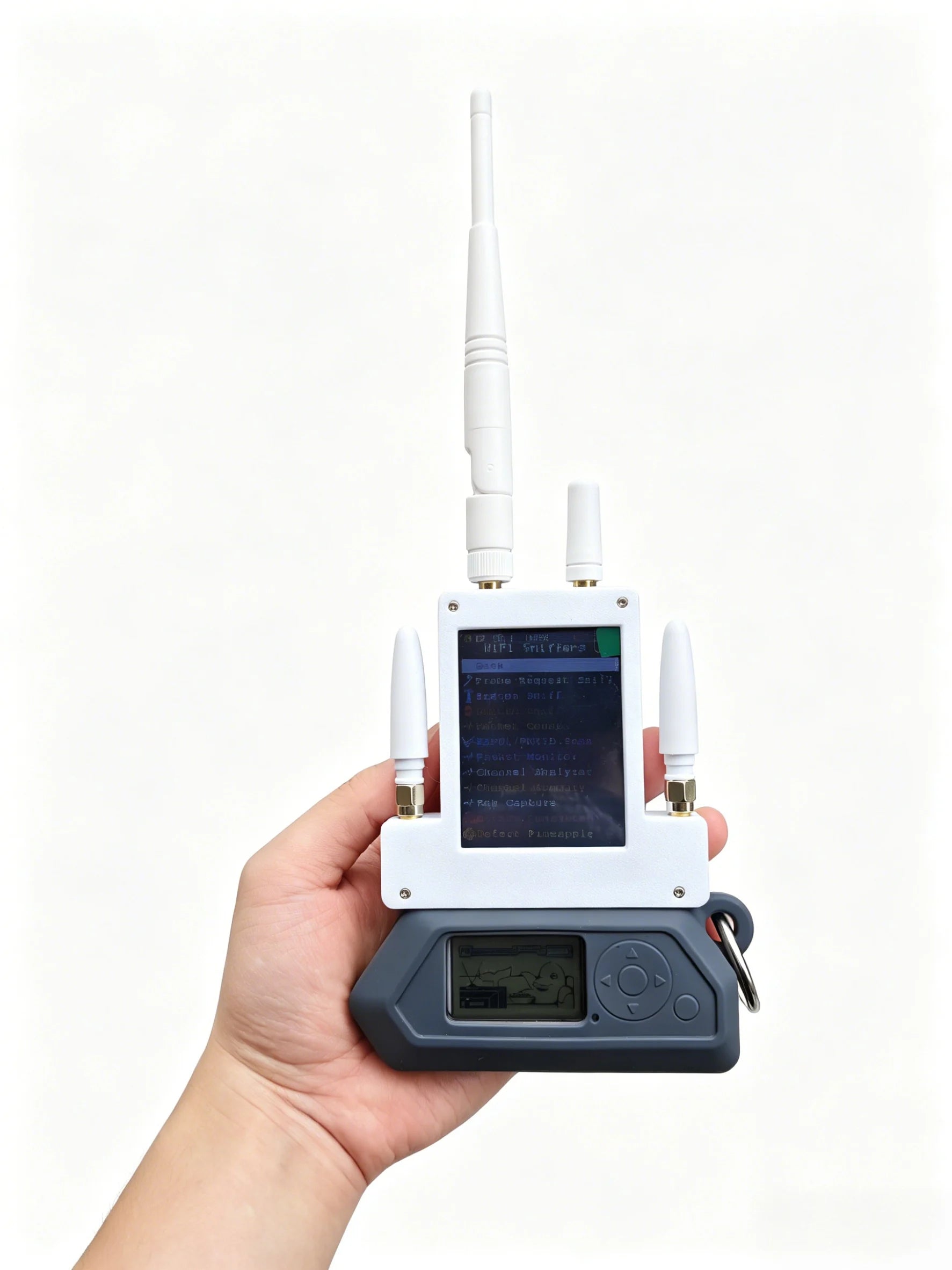

Portable FLIPPER ZERO All‑in‑One 5G Development Board 2.4G/5G WiFi Bluetooth 433MHz GPS 800mAh Battery

Portable FLIPPER ZERO All‑in‑One 5G Development Board 2.4G/5G WiFi Bluetooth 433MHz GPS 800mAh Battery

$78.41 USD
$78.41 USD $78.41 USD
Sale Sold out
Shipping calculated at checkout.

SPECIFICATIONS

Accessories Type: Antenna

Brand Name: YIBIY

Choice: yes

Compatible Brand/Model: None

Electric: Yes

High-concerned chemical: None

Origin: Mainland China

With USB: NO

FLIPPER ZERO All-in-One (5G) User Guide

Product Introduction:

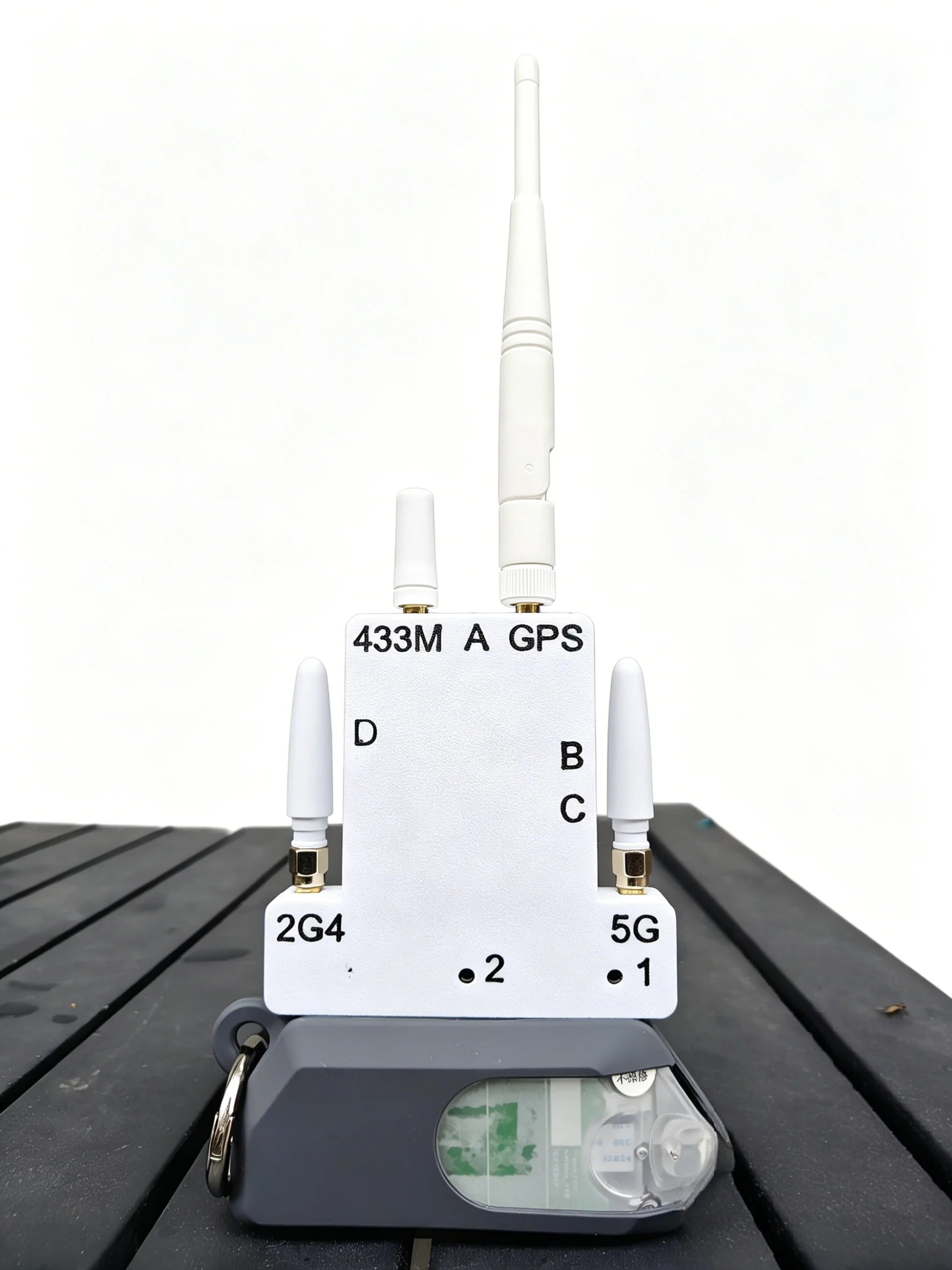

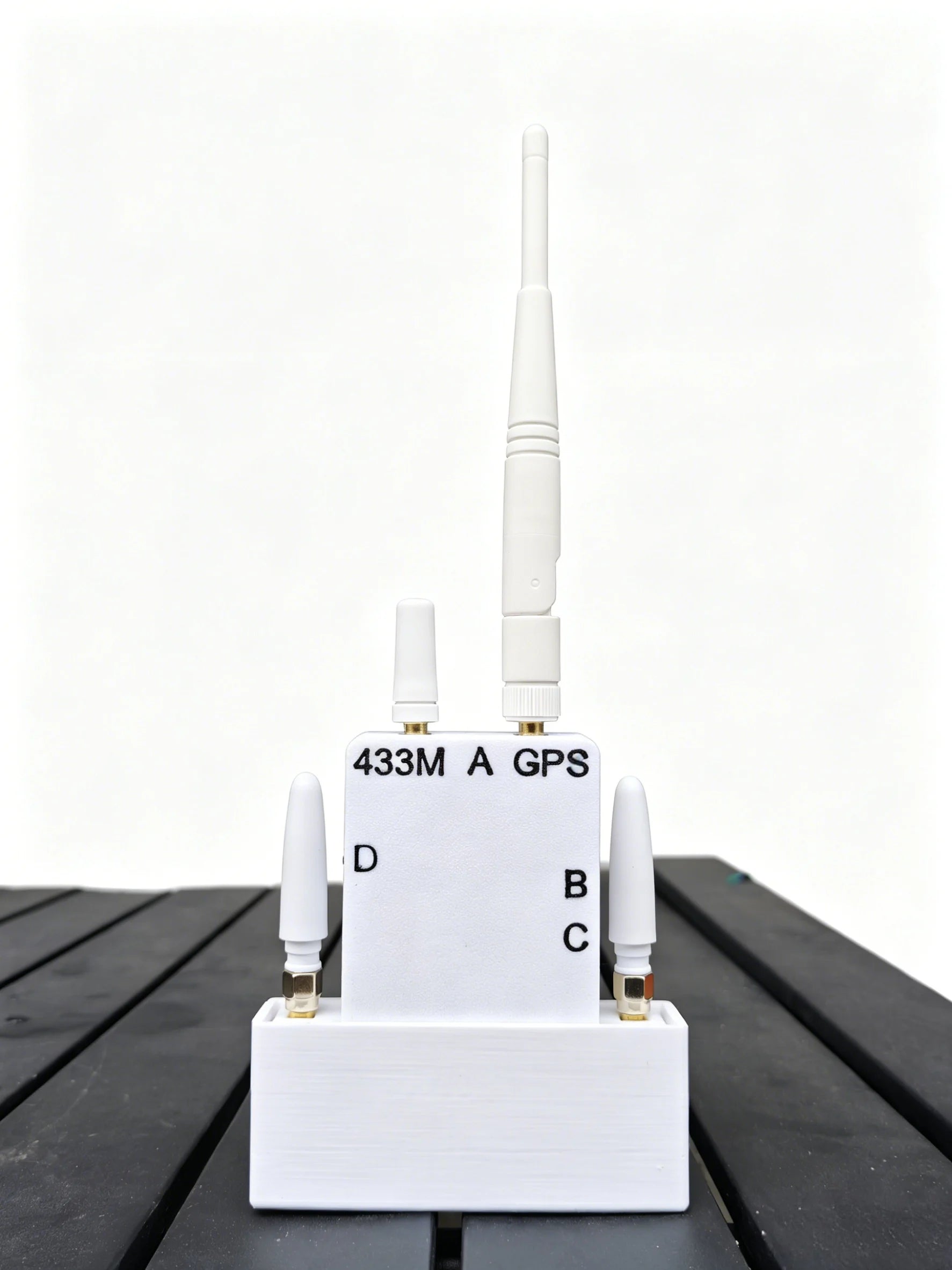

The FLIPPER ZERO all-in-one (5G) device features a 3D shell design. Its internal
antenna transmission line uses an IPX interface instead of soldering to an SMA connector,
while the battery also adopts an interface design for easy replacement, ensuring stable signal
transmission and user-friendly DIY. Additionally, it includes a card slot, a burn-in port, and
GPS positioning. The compact body houses an 800mAh battery for enhanced endurance.
Product Parameter ：
Key components: ESP32-WROOM-32UE (WIFI), ESP32-C5 (5G WIFI), A07-
S433A10S2a (433MHz), and ATGM336H-5N31 (GPS), powered by 3.3V DC.
Dimensions: 9cm × 9cm × 1.8cm (excluding the antenna);
Product list: 1 main unit, 2 2.4G/5G dual-band antennas, 1 433MHz antenna, and 1 GPS
antenna.
Supported devices: 2.4GHz/5GHz WiFi, Bluetooth, 433MHz, and GPS.
The SD card should be under 32GB, preferably in FAT32 format.
Battery: 800mAh, charging time: 2 hours (actual time may vary). Input voltage: 5V/2A,
output: 5V/2.4A.Product legend
direction for use
The complete WiFi testing procedure is as follows: First, scan APs in Sniffers to detect
WiFi networks. Next, select the WiFi network from the 'Select APs' menu under the General
menu. Finally, go to the 'Deauth Flood' menu in the Attacks menu. After entering, wait briefly
for the test to automatically begin.
WiFi setup guide: First, scan WiFi networks using Sniffers' AP scanning feature, then go
to the General menu and select APs to choose your WiFi network.
The official open-source tutorial is available for reference at
